ICONA3 Cylinder

ICONA3 Cylinder

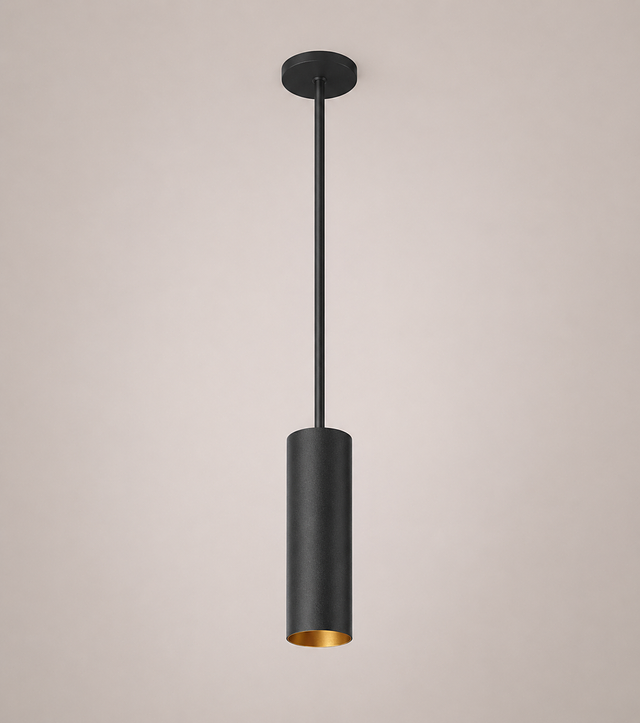

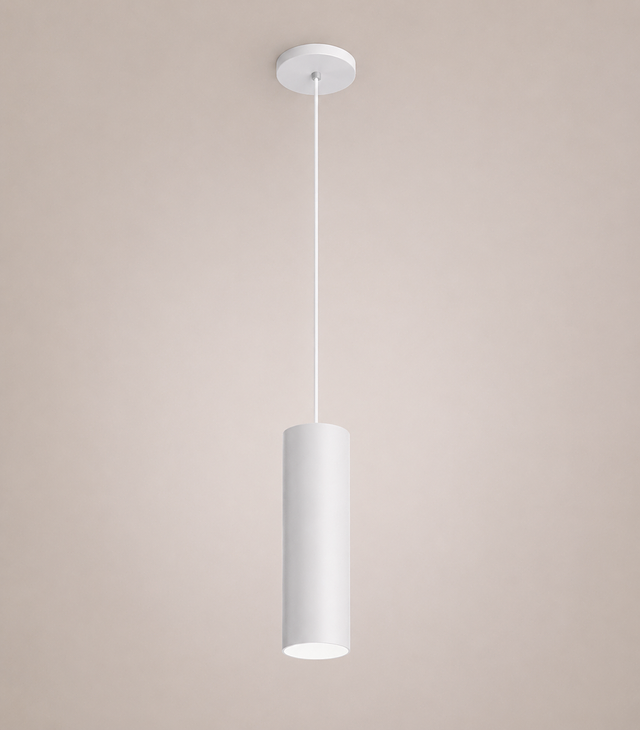

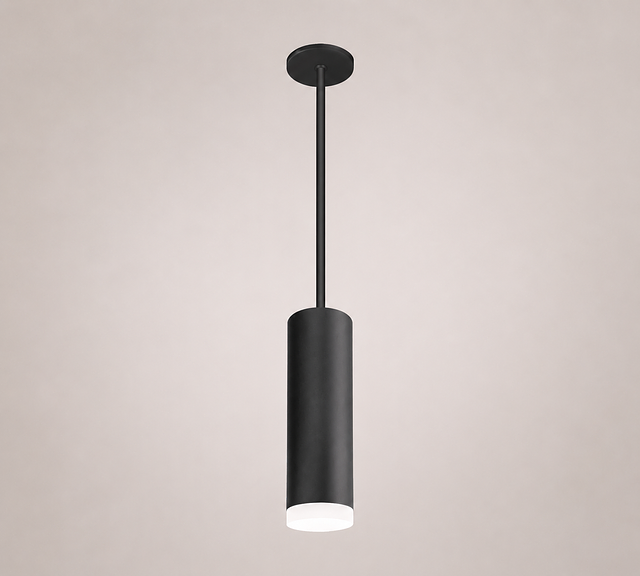

ICONA 3" Round Cylinder Pendant

The ICONA 3" Round Cylinder is a fully modular design that allows capabilities to adjust trims, optics, light outputs and CRI's.  The design flexibility to meet diverse project needs.  Up to 19Watts and 1,995 lumens of output.  4 different optic options give it design flexibilty for spot, flood and wall wash capabilities.  Standard dimming 0-10V to 1% dimming or Triace dimming for 120v applications.  Pendant mounting can be stem or cable mounted and can be to a recessed junction box or a surface mounted box.
Specification Sheet

Resources

Extruded aluminum housing finished is a polyester powder coat finish.  Available in black, white or silver paint as standard.  Penant mounts to rigid stem or cable assembly.
120-277V operation.  Class 2 LED driver with 0-10V dimming to 1% or Triac dimming for 120V applications.

Availability

  • Quick Ship

Beam Angle

  • 15
  • 24
  • 36
  • 60

CCT

  • 2700K
  • 3000K
  • 3500K
  • 4000K

Color / Finish

  • Satin Black
  • Satin White
  • Silver Anodized

Diameter

  • 3

Dimming Protocol

  • 0-10 V
  • Triac (Leading Edge)

Dimming Range

  • 1%

Distribution

  • Direct

Emergency Options

  • Remote EM Battery

Lamp Source

  • Integrated LED

Listings

  • cULus

Materials

  • Aluminum

Mounting

  • Pendant

Shape

  • Cylinder

Voltage

  • 120-277 V

Warranty

  • 5 yr
